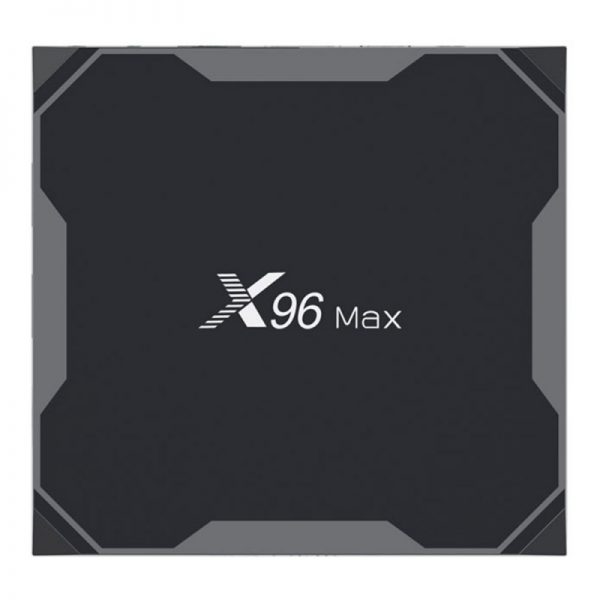

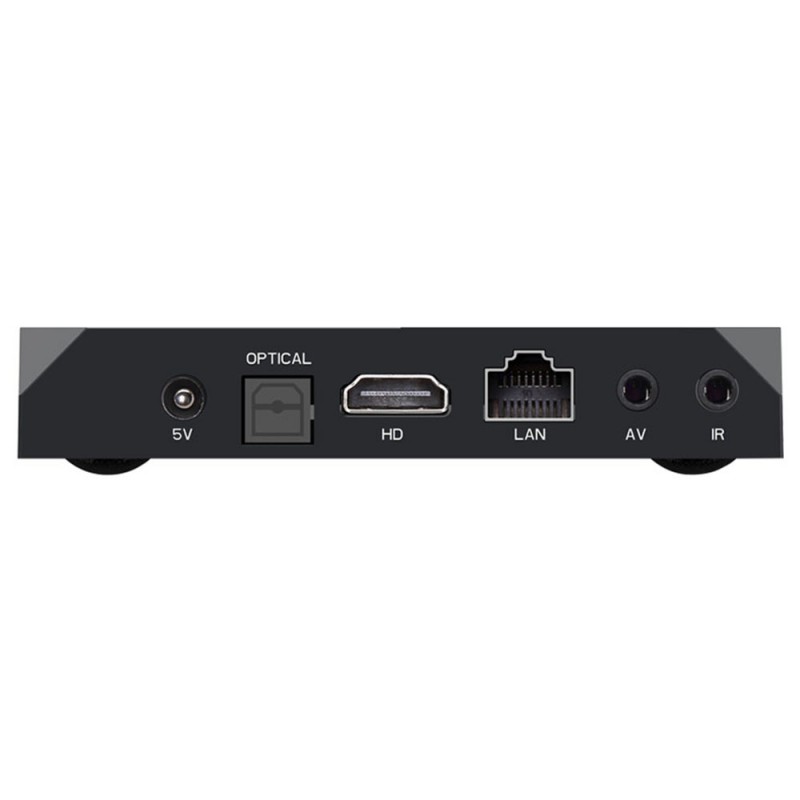

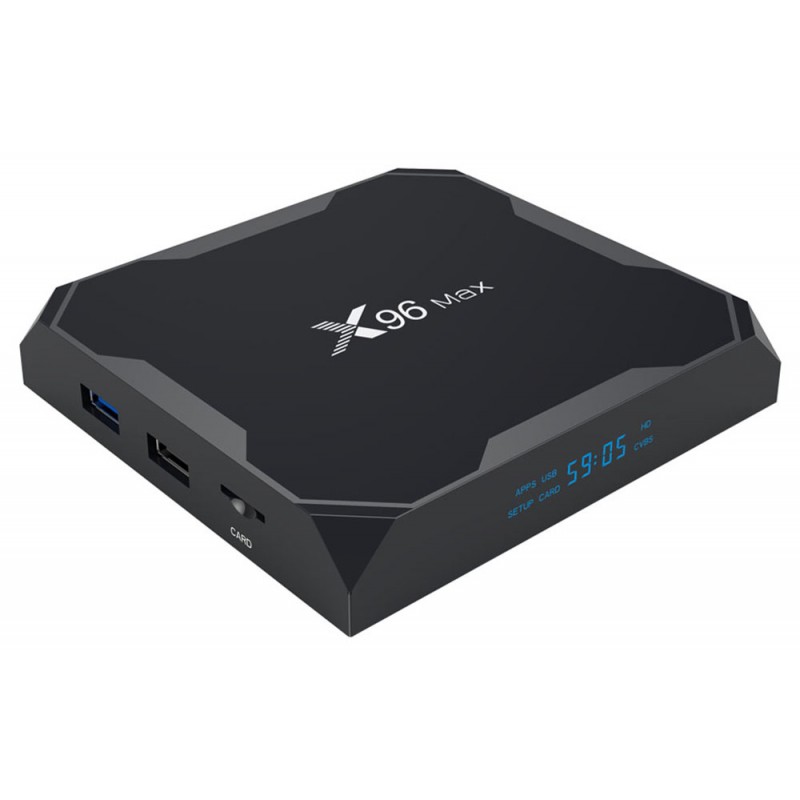

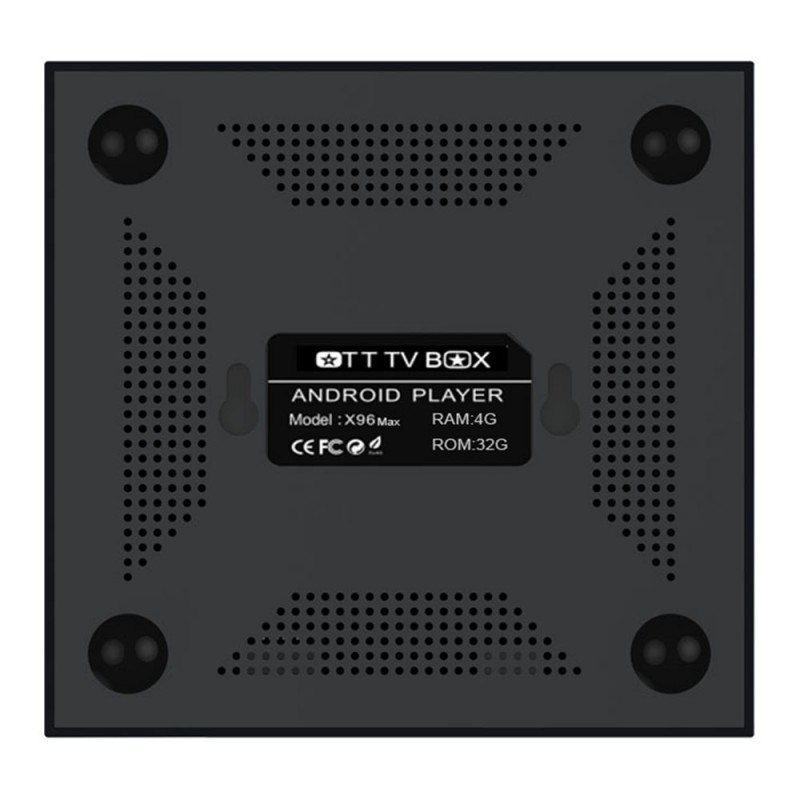

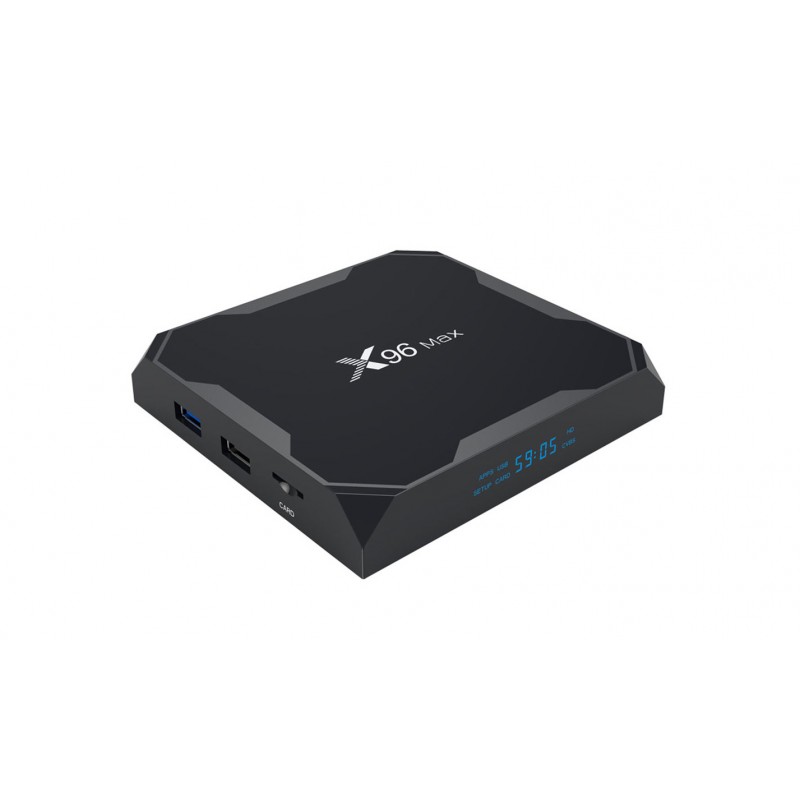

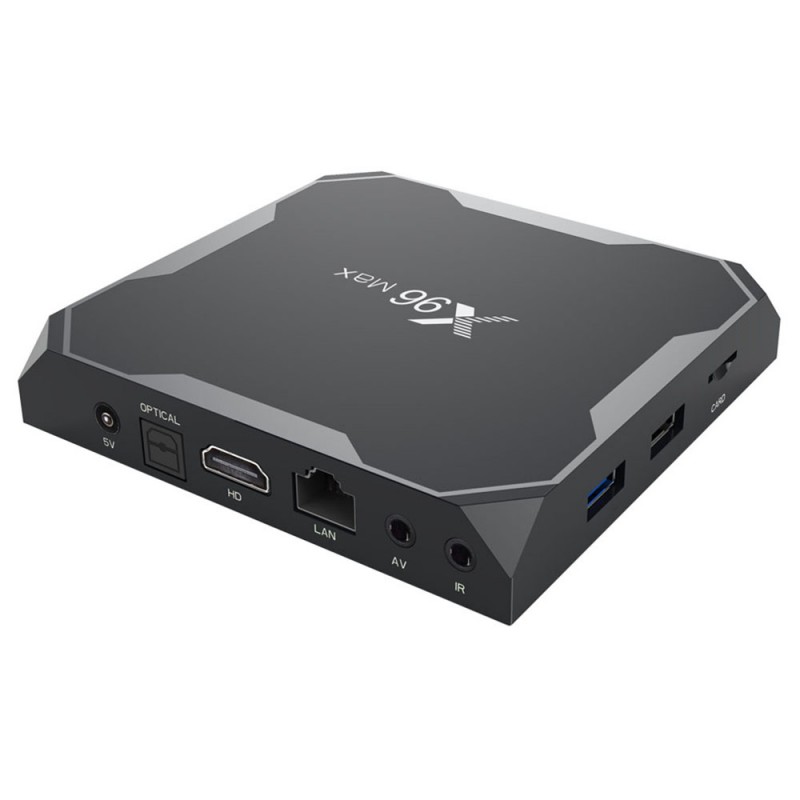

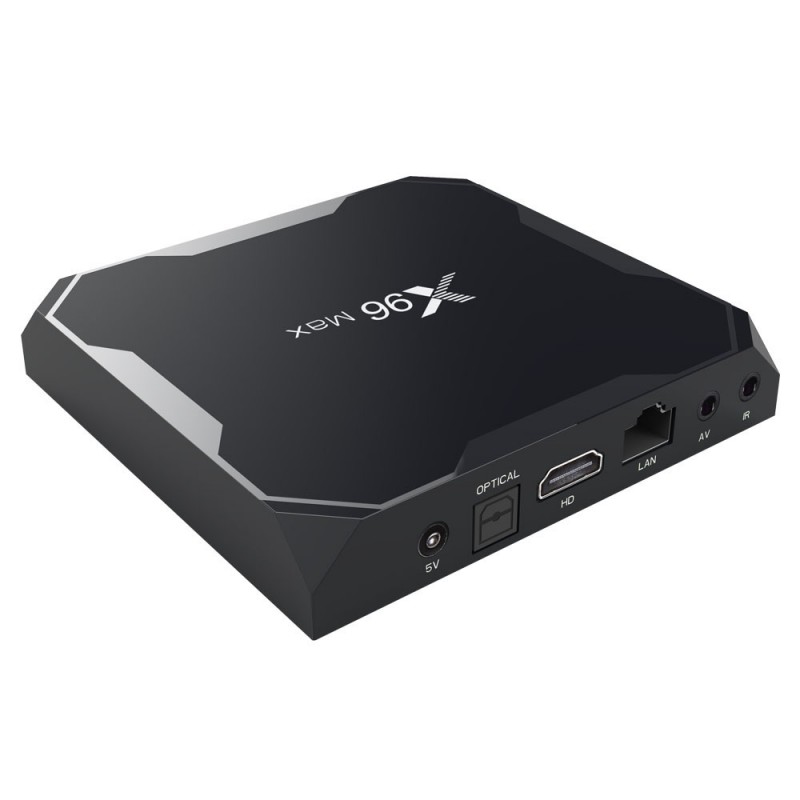

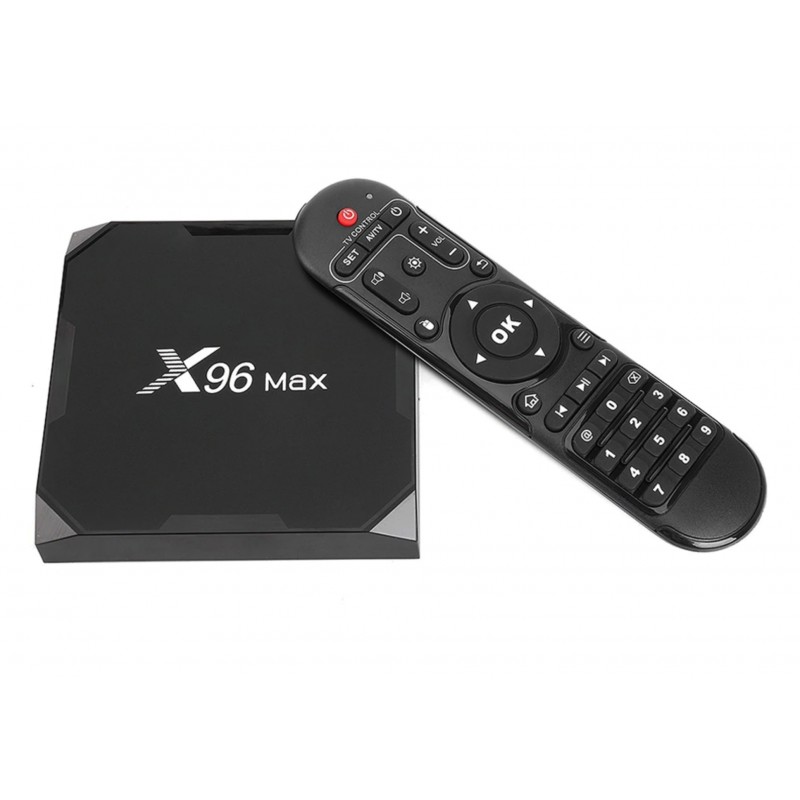

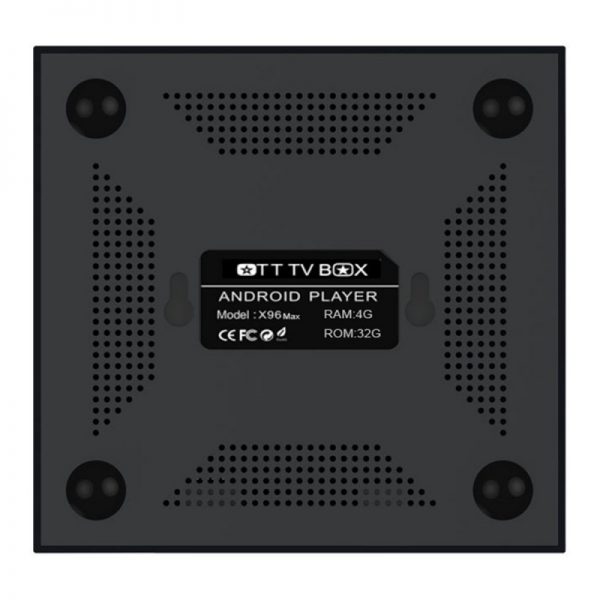

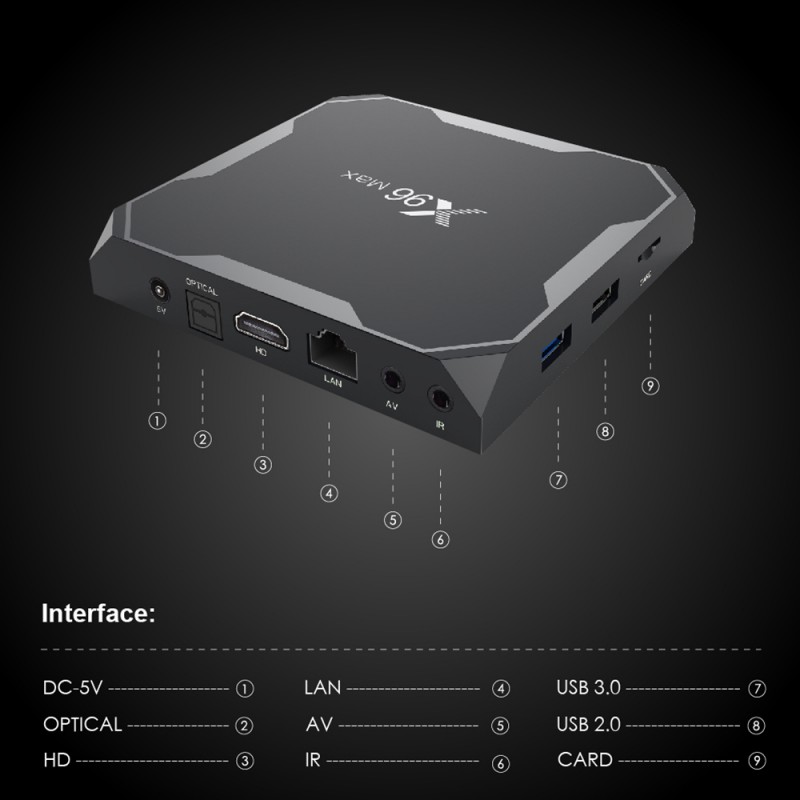

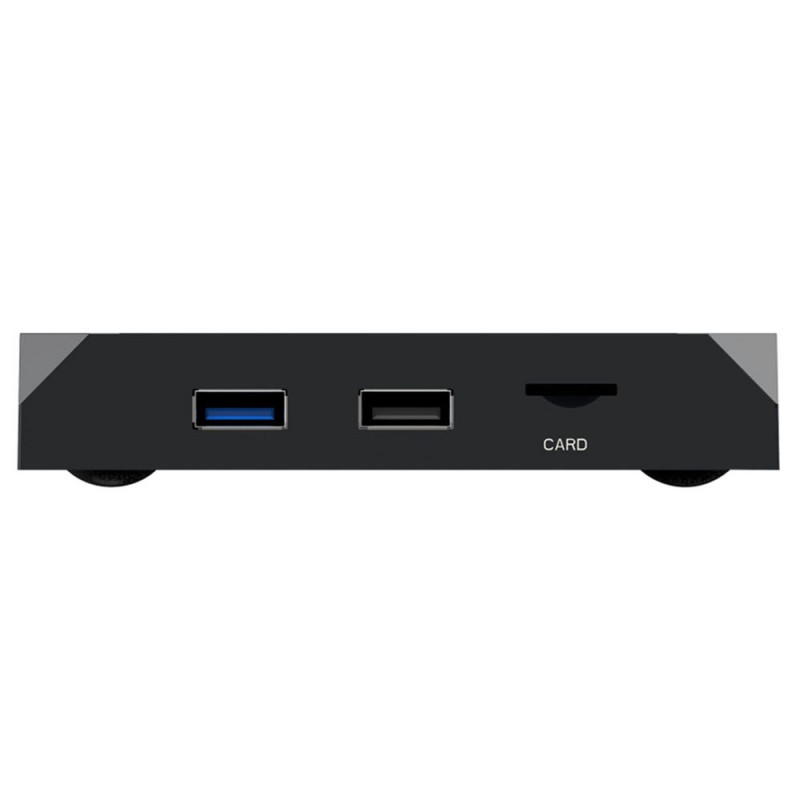

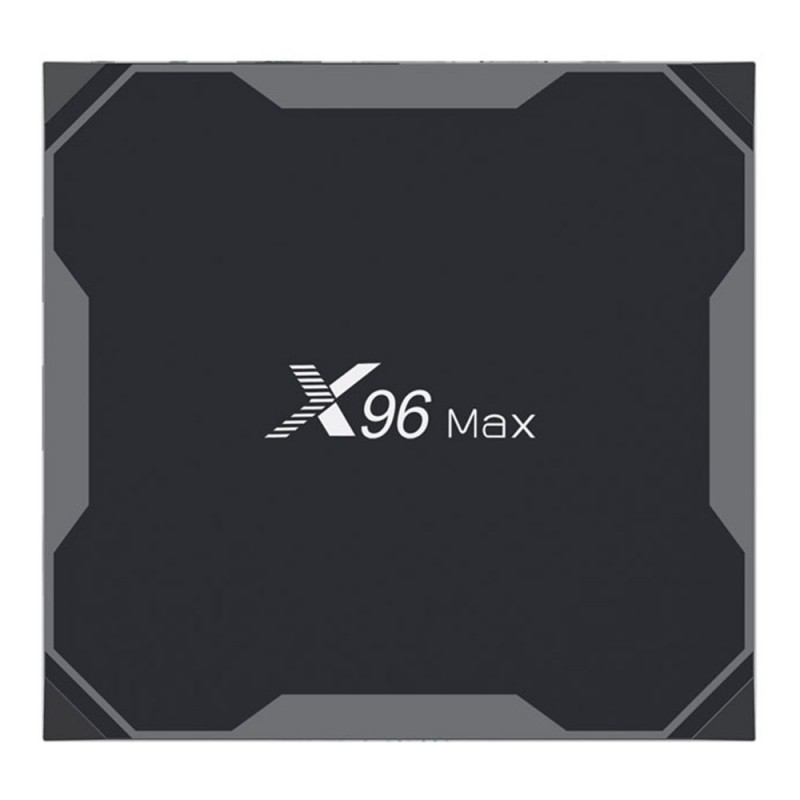

X96Max S905X3
250lei
uClan
uClan X96Max+ 8K Android 9.0 TV box Amlogic S905X3 64-bit Quad Core ARM® Cortex™ A55
Stoc epuizat
Denys 2 / Denys 2.2 created on the basis of the popular Denys H.265 line, using the updated fast dual-core ARM A7 GX6613 processor, the main advantages of which will be significantly increased overall system performance, even greater adaptability of the system to work with network streams, support for FULLHD H.265 10bit, (previous Denys H.265 line only supported FULLHD H.265 8bit …) Also, the new Denys 2 line is designed based on the experience of previous models and has better energy efficiency. The remote control has been updated with a convenient added programmable TV buttons and buttons for quick access to user’s network applications.
The main features of the Denys 2 model line set top boxes:
Denys 2 / Denys 2.2 digital satellite, hybrid set-top boxes are distinguished by many convenient functions at the new level of modern technologies, added to the line with wide participation of users and taking into their User Experience (UX) from the previous models of uClan brand.
Convenient universal IPTV player with EPG for easy working with .m3u8 links and .m3u playlists.
Working with middleware portals Stalker, Ministra, Xtream, etc.
Play content on your home network and using DLNA.
Convenient portals with a lot of content.
Management of many settings using the WEB Interface.
Support for CAS systems with control via WEB Interface.
Exclusively designed launcher with a „dynamic menu” for the user to add, select and edit many similar applications (slots). Here user can create many playlists and / or portals in the STB, not being limited to 2-4 slots as in set top boxes – competitors.
The convenient universal remote is equipped with programmable buttons to control the volume and TV inputs. For the user, four buttons for quick access to favorite functions are implemented, for example playlist or portal player, YouTube application, etc.
Technical details of the system:
The GX6613H2 processor is a high performance multi-standard HD decoder for DTV set-top boxes. It includes 32-bit dual-core ARM A7 processor, RAM memory, DVB-S / DVB-S2 demodulator, multi-standard video decoder with support for MPEG2, MPEG4, AVS, AVS plus, H.264, H.265 10 bit at 60 frames in second and multi-standard audio decoder, video deinterlacer and post processor, full color OSD and 2D graphics accelerator, TV encoder, video DAC, audio DAC, HDMI transmitter, USB host controller, etc. It guarantees powerful functionality, excellent performance and low system cost. The channel demodulator is designed for DVB-S and DVB-S2, consists of dual I and Q ADC, QPSK / 8PSK / 16APSK / 32APSK demodulator, LDPC FEC, etc. Fast search mode for blindly capturing the channel / symbol rate and / or code rate, which realizes a high-speed search for a program over the entire band without any channel information.
The high-performance 32-bit ARM A7 dual-core processor offers powerful software process capabilities that support many complex applications. A well-developed operating system and API libraries significantly reduce development time.
The multistandard video decoder supports FULLHD video decoding: MPEG2 / 4, H.264, H.265 (10 bit) @ 60fps, AVS, AVS plus and JPEG / MJPEG HD. Patented video post-processing unit provides excellent deinterlacing and upscaling effect.
The processor-based audio decoder supports MPEGI / II, MP3, Dolby Digital (optional), Dolby Digital Plus (optional), MPEG4 AAC, HE-AAC and DRA decoding.
PAL / NTSC encoder, 1-channel video DAC and built-in HDMI1.4 transmitter can be configured for a variety of HD and SD video output modes. Simultaneous HD and SD output is supported.
True Color OSD and 2D graphics accelerator provide colorful menu effects.
Details about the CPU:
- High speed blind channel / symbol rate and / or code rate search mode. High-performance 32-bit dual ARM A7 processor integrates 32-bit instruction cache and 32-KB data cache, 256-KB L2 cache with NEON engine. Overall performance 3000DMIPS. JTAG and TEE debugging is supported. Built-in security system. 128 PID filters, each of which can use a maximum of 128 separate channels of data filtering, the maximum filtering depth of each channel is 16 bytes. Multi-standard video decoder with JPEG / MJPEG, MPEG2, AVS, AVS plus, MPEG4, H.264, H.265 (10 bit) @ 60fps! Advanced HD or SD video decoding. Error protection and masking.
- The audio decoder supports MPEGI / II, MP3, Dolby Digital, optional Dolby Digital Plus, MPEG4 AAC, HE-AAC and DRA decoding, and more.
- OSD with True color and 2D graphics accelerator, anti-flicker filter.
- High performance deinterlacer and video scaler with progressive output support. All analog television standards are PAL and NTSC. Integrated 1-channel video DAC, with CVBS CGMS output mode.
- Supports DCS and Rovi HDMI 1.4, HDCP 1.4 and DVI 1.0 compatible transmitter.
- Built-in integrated 2-channel audio DAC, with signal-to-noise ratio over 90dB.
- 2 USB 2.0 host controllers, built-in PHY supporting high-speed and full-speed devices for PVR.
- Integrated 10M / 100M Ethernet MAC and PHY controller.
- Built-in or external 16-bit DDR3 SDRAM.
- 1 parallel or serial TS.
- Conditional access and data broadcast are supported.
- Various advanced CAS security features are supported.
- CAS support without smart card.
Specifications:
- MiniLinux operating system (Denys_OS)
- Access via WebIF and FTP
- Conax card reader with full OSCAM
- Recording and Timeshift (* optional)
- 100Mbit LAN Ethernet network
- Support for WiFi / 3GB modems via USB ports
- Support DLNA playback
- Unicable and FastScan Support
- Support for DiSEqC 1.0, 1.1, 1.2 and USALS
- EPG – Electronic Program Guide (DVB / Internet)
- High quality user interface
- 4 programmable buttons on the remote control
- Subtitle and Teletext support
- Consumption 0.5W in STBY mode
Equipment:
- 4-digit 7-segment display
- LED indicator (red / green)
- IR sensor
- Satellite LNB input
- 100Mbps network connection
- HDMI output
- Optical digital audio output SPDIF
- Audio Video minijack to RCA
- Connecting an external LED / IR
- 2x USB 2.0 ports
- Power supply 12V DC
- Minijack for connecting RS232
Inside giftbox:
- Denys 2 digital set top box with 12 volt power adapter
- IR remote control
- 2 x AAA batteries
- User’s Manual
- External IR receiver
- HDMI cable
